DS18B20 Temperature Sensor

Applications: robot

Features: food grade SS304 shell, digital signal output, high accuracy, good stability, waterproof and moistureproof

Characteristics:

Temperature  Accuracy:±0.5℃ at range of-10℃~+80℃

Working Temperature Range:-55℃~+105℃

Insulation    Resistance:500VDC≥100MΩ

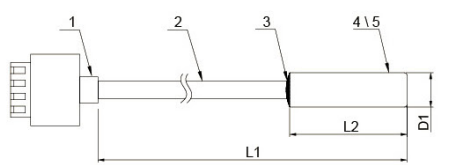

Product Drawing:

Note:  1. PH connector

          2. 26AWG 80℃300V PVC sheathed cable

          3. Epoxy resin

          4. DS18B20 chip

          5. SS304 shell
