DS18B20 Temperature Sensor

Applications: medical ventilator, oxygen generating machine

Features: food grade SS304 shell, digital signal output, high accuracy, good stability

Characteristics:

Temperature  Accuracy:±0.5℃ at range of-10℃~+80℃

Working Temperature Range:-55℃~+105℃

Insulation    Resistance:500VDC≥100MΩ

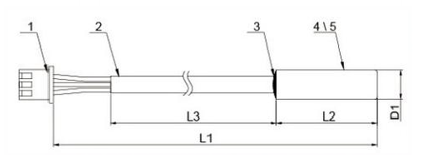

Product Drawing:

 Note:  1. XH connectors

            2. 26AWG80℃ 300V cable

            3. Epoxy resin

            4. DS18B20 chip

            5. SS304 shell
