Applications: industrial oven, grill
Features: composite structure of brass and SS304 for a easy installation
Characteristics:
Working Temperature Range: -30℃~+300℃
Thermal-time Constant:MAX.10sec
Insulation Voltage:1800VAC,0.5mA,2sec
Insulation Resistance:500VDC≥100MΩ

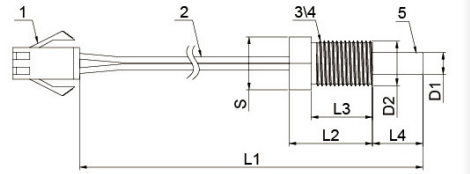

Product Drawing:
Note: 1. SM connector
2. 26AWG 380℃300V PTFE cable
3. SS304 Shell
4. Brass shell
5. Resistance: R=231.5kΩ±1%, B =4573K±2%
