Applications: coffee machine, electric kettle, water heater, instant- heating faucet
Features: high temperature resistance, easy installation, high sensitivity of temperature, meet FDA&LFGB standard.
Characteristics:
Working Temperature Range:-30℃~+180℃
Thermal-time Constant:MAX.1.5-3sec
Insulation Voltage:1800VAC,0.5mA,2sec
Insulation Resistance:500VDC≥100MΩ

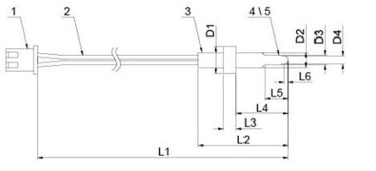

Product Drawing:
Note: 1. XH connectors
2. UL133226AWG200℃ 300V cable
3. Epoxy resin
4. Resistance: R=100KΩ±1%,B=3950K±1%
5. Resistance: SS304 shell
