Applications: household oven, steamer, brasing oven, particle furnace, industrial oven, air compressor, temperature measurement instrument, heat meter, industrial equipment control, aerospace, high-speed rail, railway track, wind power generation, charging pile, new energy motor and voltage transformer, etc.
Features: food grade SS304 material, high accuracy of temperature sensing, movable brass screw for easy installation Characteristics:
Accuracy:class B,class 2B, matched accuracy±0.1℃
Working Temperature Range: 0℃~+105℃
Curve of Characteristics: TCR=3850ppm/K
Pressure Resistance PN=16bar (flow rate 2m/s)
Communication Mode: two-wire system,three-wire system
Meet EN1413 and CJ128-2007 standards

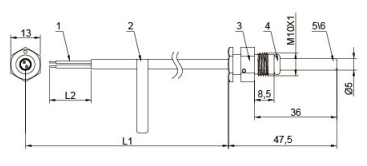

Product Drawing:
Note:1. 24AWG 105℃ 300V OD4.2 PVC sheathed cable, 2. Red and blue labels,
3. M10 brass nut, 4. Sealing ring
5. Φ5.0×45mm SS304 shell 6. Chips: PT1000
