Applications: grill, baked oven, industrial equipment
Features: using food grade SS304 tube and fiberglass layer for insulation; good stability, high precision of temperature measurement
Characteristics:
Working Temperature Range:-50℃~+482℃
First Level Accuracy:±0.4% or ±1.1℃
Response Speed:MAX.5sec
Insulation Voltage:1800VAC,0.5mA,2sec
Insulation Resistance:500VDC≥100MΩ

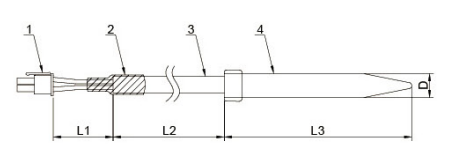

Product Drawing:
Note:1. 5566 connector,
2. Heat-shrinked tube,
3. GG-K-24-SLE thermocouples,
4. SS304 shell
