Ultrasonic flow senors
Model No.︰
BY-1M020107H2AD
Brand Name︰
Beyondoor
Country of Origin︰
China
Total 2 Related Items
Product Description
( I ) Product Overview
1.ELECTRICAL SPECIFICATIONS
|
Items
|
Unit
|
Content
|
|
Nominal Frequency（Fn）
|
MHz
|
1.0±0.10
|
|
Resonance Impedance（R0）
|
Ω
|
150~500
|
|
Static Capacitance（CP）
|
pF
|
1200±20%
|
2. TEST
2.1 Test Conditions
Parts shall be measured under a condition (Temp.:25℃±3℃, Humidity: 40%~70% R.H).
2.2 Test Methods
|
Item
|
Test Methods
|
|
Center Frequency（Fr）
|
Measuring thickness vibration mode，Agilent 4294A Impedance analyzer
|
|
Resonance Impedance（R0）
|
|
Static Capacitance（CP）
|
Digital Electric Bridge (at 1kHz/1V)
|
3.Sensor leads, red as the positive, white as the negative. Please connect the earth wire to the metal case.

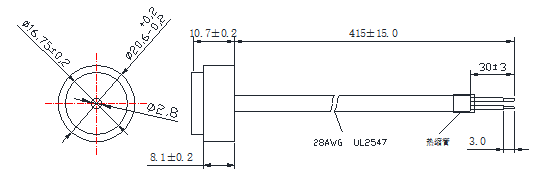

( II ) Mechanical
Product Image
|
