Model No.︰BY-NT1501
Brand Name︰Beyondoor
Country of Origin︰China
Unit Price︰-
Minimum Order︰-
Applications: water heater
Features: moistureproof, waterproof, terminal docking, high accuracy of temperature measurement
Characteristics:
Working Temperature Range: -30℃~+110℃
Thermal-time Constant:MAX.7sec
Insulation Voltage:1800VAC,0.5mA,2sec
Insulation Resistance:500VDC≥100MΩ

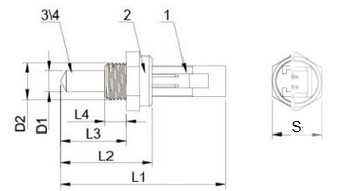

Product Drawing:
Note: 1. Connectors
2. Epoxy resin
3. Resistance:R=10KΩ±1%,B =3435K±1%
4. Brass shell
